The ultimate super strength magnetic sweeper for roads, parking lots, driveways, airport runways, construction sites, landfill and waste sites, or any other drivable terrain or smooth surface where ferrous metal debris needs removed.
The MKS5000 allows for up to three units to be towed side-by-side for up to 24’ of magnetic sweeping width.
PHOTO GALLERY
Click on photo below to see slideshow.
Features & Benefits:
- Standard sweeping widths of 60”, 72”, 84”, 96”.
- Magnet housing is height adjustable up to 5” clear making it ideal for smooth surfaces or drivable terrain. Effective tramp metal collection at speeds up to 16 MPH with a 2” clearance height.
- The trailer is constructed of welded heavy structural steel members and powder paint coated for long lasting performance and durability. Magnet housing is constructed of heavy gage steel.
- Cleaning of the magnet face is accomplished by pulling gas spring assist release handles which automatically releases the attracted metal debris to the ground.
- The standard arrangement has the magnet assembly mounted below the trailer as shown. Other design options are for bumper mounted, or forklift carried magnet assemblies.
- Equipped with 5.7 x 8” pneumatic tires, safety reflectors, safety chain.
- Bolt-on hitch frame reduces shipping costs.
- Replacement parts available.
Additional Options:
- Foam filled tires to prevent costly and time-consuming tire punctures.
- Triple-tow configurations pulled by a single vehicle for a minimum of 15’ to a maximum of 24’ sweeping width. This option includes additional hitches on each unit allowing for inline towing maneuverability of all three sweepers by a single vehicle.
- Choice of a tow ring for a pintle hitch, or a ball coupler for a 2” ball hitch at the same cost. Hitch height is adjustable from a nominal 20” – 28”.

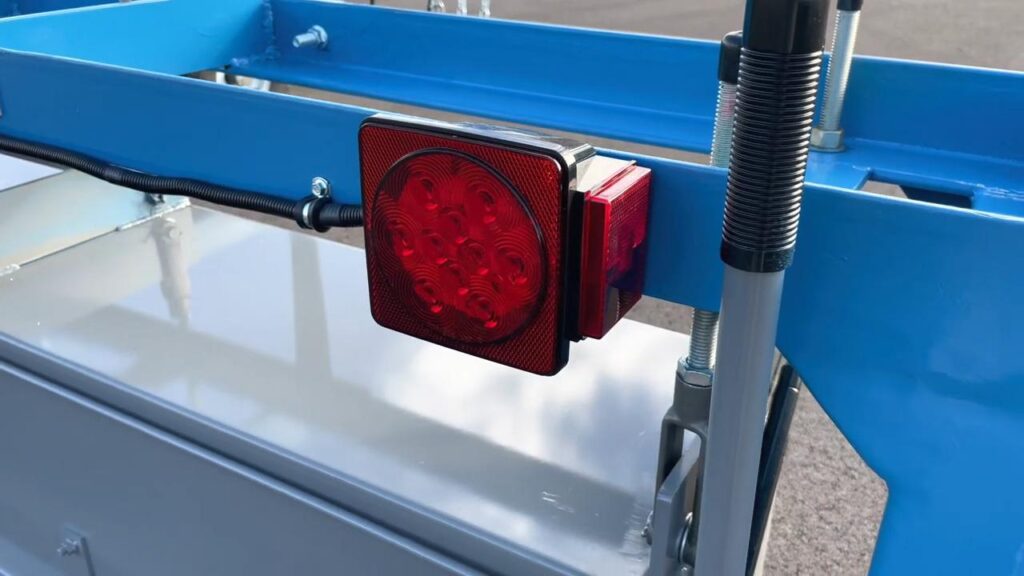

- Trailer light kit.
